Product related parameters:

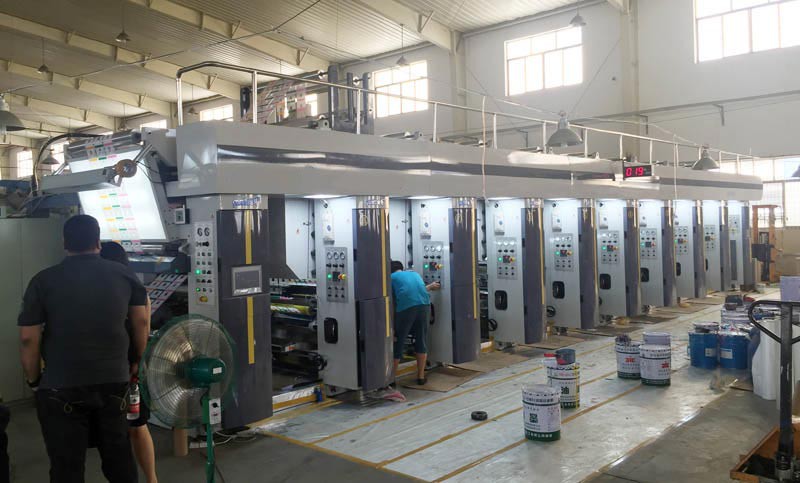

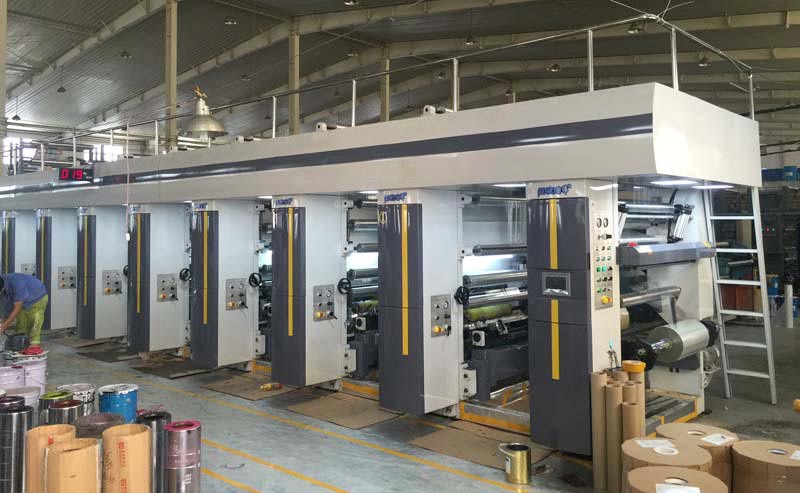

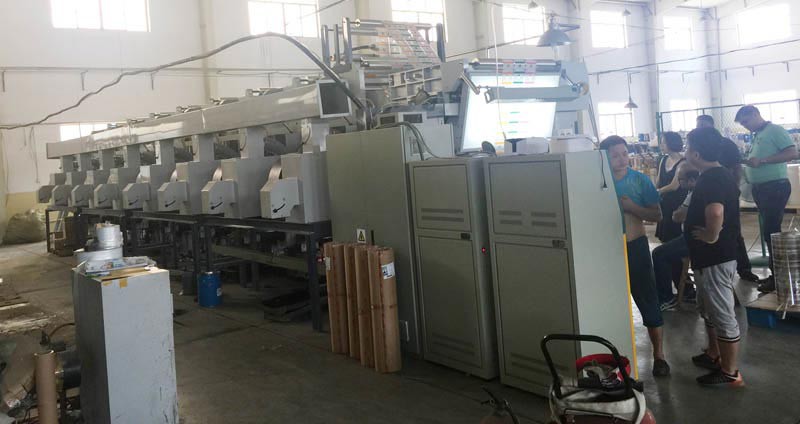

Our latest gravure printing machine adopts an advanced seven motor four section closed-loop tension control system, and the automatic tension winding action program is controlled by Siemens PLC and human-machine interface. This machine is suitable for printing all kinds of film materials. Its advantage is that it can work at high speed without stopping the machine and continuously feed materials automatically. The machine has exquisite structural design and beautiful appearance.

Important components:

Seven motor vector control four closed-loop tension control system, Japan tengcang cylinder +abb motor + Japan Yaskawa frequency converter + Germany Siemens PLC, etc

Main structure and characteristics:

1) Machine printing speed: 120-180 M / min,

    Mechanical speed: 180 m / min;

2) Main transmission mechanism (pneumatic clutch version): the main transmission adopts Japanese Yaskawa vector inverter to control vector motor;

Function: drive each group of printing plates;

Features: save electric energy;

3) Shaftless plate mounting structure: use the cylinder to mount the plate and pull the mandrel to mount the plate;

Function: ensure the concentration, reduce the time of version change, and improve product quality;

Features: horizontal adjustment with screw movement;

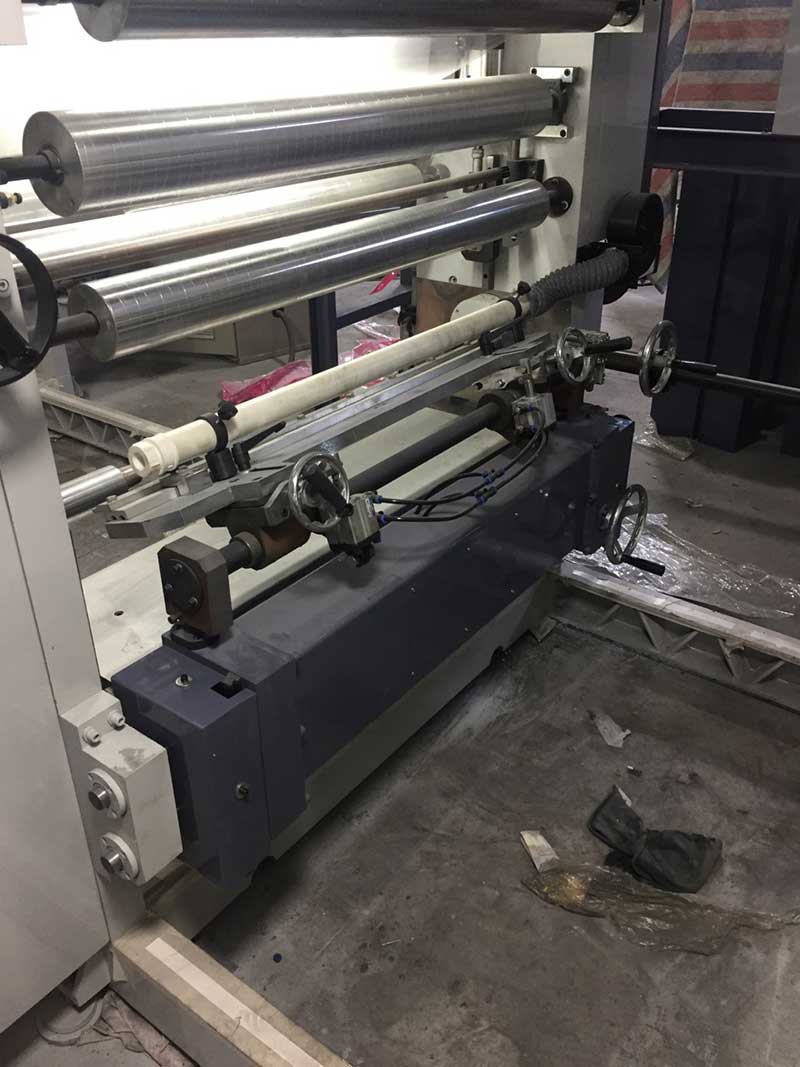

4) Scraping structure: the pressure adopts a single cylinder, and the horizontal movement adopts synchronous motor rotating cam movement;

Function: prolong the service life of the version;

Features: the angle can be adjusted up and down at will;

5) Embossing lifting structure: embossing adopts double cylinder power, sliding block self-locking head, leakage cylinder and lower protection cylinder.

Function: ensure the average pressure and color difference.

6) Color manipulator: use computer to control synchronous motor and drive ball screw adjustment through reducer;

Function: automatic coloring;

Features: rotary lubrication, high color accuracy.

7) Receiving and unloading structure: two stations work at the same time, and the receiving and unloading tension and the receiving and unloading tension adopt variable-frequency vector control line speed;

Function: accelerate color stability, do not run when horizontal, for batch printing;

Advantages: it can save all kinds of materials and energy by about 20% and reduce the cost of products.

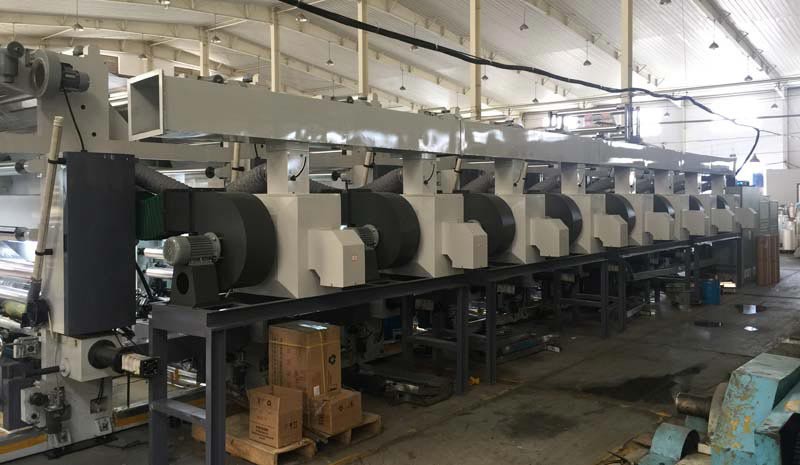

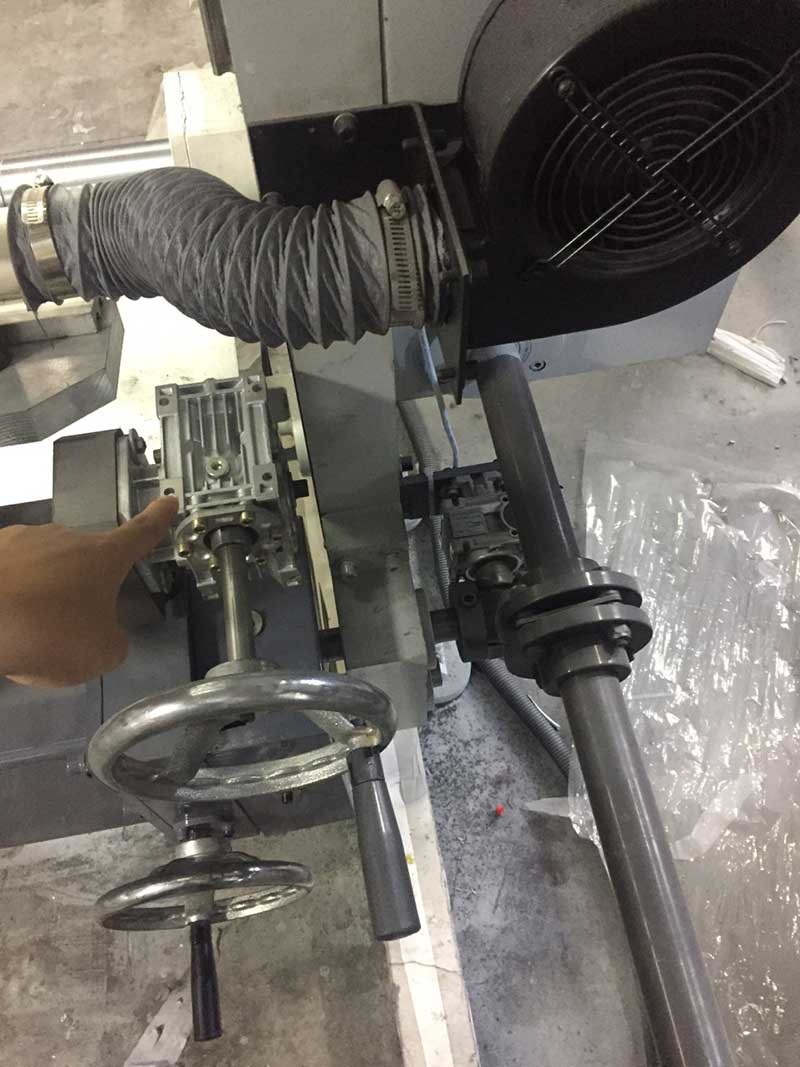

8) Drying and cooling structure: the oven is blown and sucked by a centrifuge, and electric heating tubes are distributed at the air outlets of each group of ovens for heating.

Features: air volume thermal circulation is formed inside the oven, and the intelligent temperature control air circulation system;

Function: save electricity.

1. POLYPROPYLENE film OPP/BOPP/CPP15-60 micron 5, PVC/PO/PVDC film 40-70 micron

2. Polyester film PET 12-60 micron 6, combined film up to 150g/m3

3. Nylon film PA 15-60 micron 7, combined laminate film up to 150g/m3

4. CELLOPHANE 20-30 micron 8, polyethylene film PE 60-100 micron

Characteristics of Material：

1. Polypropylene film opp/bopp/cpp (thickness range): 15-60 microns;

2. Polyester film PET (thickness range): 12-60 microns;

3. Nylon film PA (thickness range): 15-60 microns;

4. Cellophane (thickness range): 20-30 microns;

5. Pvc/po/pvdc film (thickness range): 40-70 microns;

6. Weight of composite membrane: 150g/m3;

7. Weight of composite laminated film: 150g/m3;

8. Polyethylene film PE (thickness range): 60-100 microns.

Main technical parameters

Printing Principle of Computer Registered Rotogravure Printing Press

Computer registered rotogravure printing press is in letterpress printing, the whole plate cylinder is inked, and the ink on the blank part of the plate is scraped off by the scraper, and the ink on the graphic part is left, and then the paper is passed through the press. The printing cylinder imprints on the back of the paper, so that the ink in the concave part is directly transferred to the paper surface, and finally the printed matter is piled up or rewound through the receiving part, so that the printing process of the gravure printing machine is completed

Precautions of computer registered rotogravure printing press

1. During operation, do not put your hands into the running parts of the computer registered rotogravure printing press, especially the pinch roller.

2. When checking the computer registered rotogravure printing press, the main power switch on the main control cabinet must be turned off.

3. When the computer registered rotogravure printing press is stopped for operation and adjustment, the stop button should be locked.

4. When doing electrical inspection, turn off the main power supply.

5. When feeding and cleaning the hot roller in the drying oven, be sure to turn off the heat source first.

6. Before starting the computer registered rotogravure printing press, it should be confirmed that the exhaust air of the drying box and the ventilation of the workshop are normal.

What is the difference between gravure and rotogravure?

Gravure printing is an intaglio printing process; that is, it involves engraving an image onto an image support. In rotogravure, images are acid etched onto the surface of metal cylinders—one cylinder for each color—in a cell pattern. Unlike letterpress or letterpress printing, in which the image is raised, or offset printing, in which the image is flush with the printing plate, so that the cells are recessed into the cylinder. The cylinders are etched with cells at different depths. These cells hold the ink that is transferred to the substrate. The size of the cells must be precise because darker cells produce more intense colors than lighter ones.

The chamber is filled with ink, and the ink is wiped or scraped off the non-printing parts of the plate or cylinder by a squeegee. The paper or other substrate is then pressed against an inking cylinder on a web press, and the image is transferred directly to the media, unlike offset printing, which uses an intermediate cylinder. The engraved cylinder is partially submerged in an ink fountain, which picks up ink to fill its sunken cells with each revolution of the press.

Flexographic printing (rotogravure) uses printing plates with raised surfaces (letterpress printing) and fast-drying fluid inks to print directly onto printed materials. These plates are made of rubber or a light-sensitive polymeric material called photopolymer and are attached to cylinders on rotary printing equipment. Flexographic printing is performed from a flexographic printing plate wound on a rotating cylinder. The plates are usually attached to the cylinder with double-sided tape.
