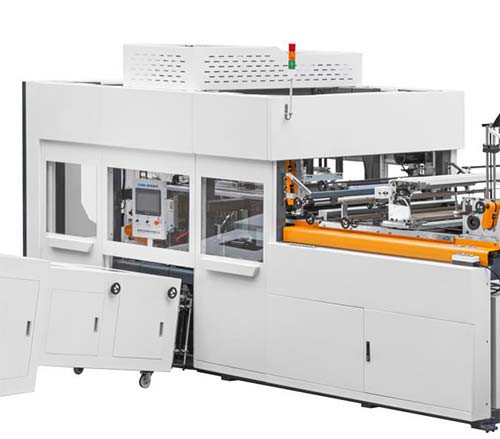

Automatic Non Woven Bag Making Machine
(AUTOMATIC NON WOVEN BOX BAG MAKING WITH ONLINE HANDLE ATTACH)
Machine Description of Automatic Non Woven Bag Making Machine

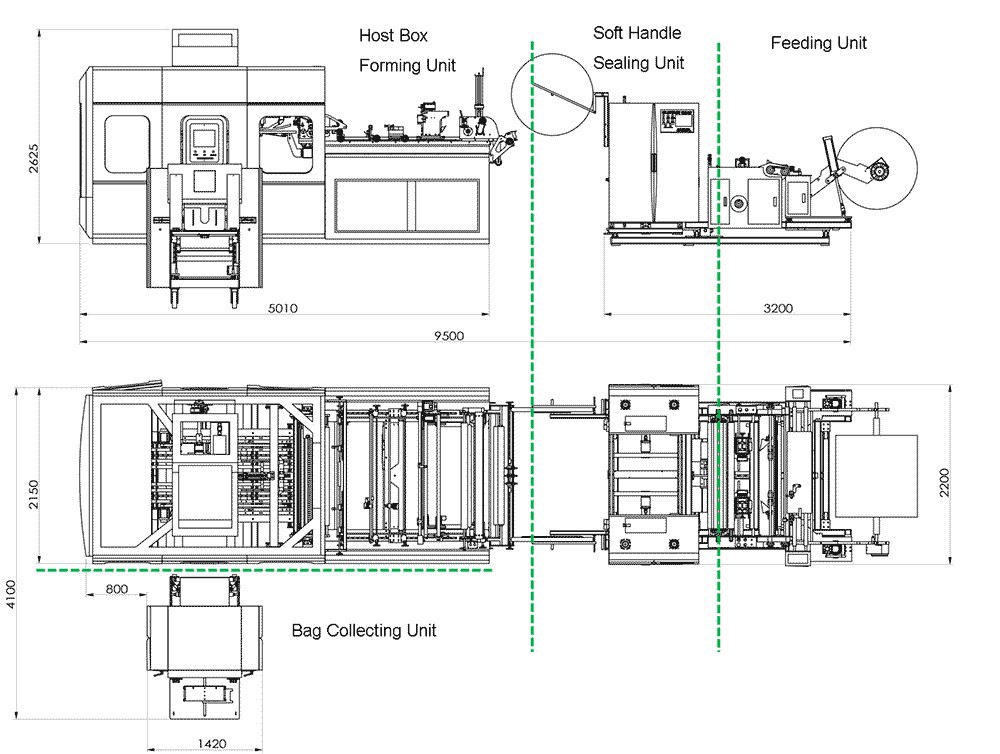

Schematic diagram
Process flow
Auto non woven roll feeding-> Auto tension control, centralization-> Mouth folding-> Handle welding-> Handle folding-> Online impression-> Bag forming-> Bag folding -> Bag collection -> Bag auto packing

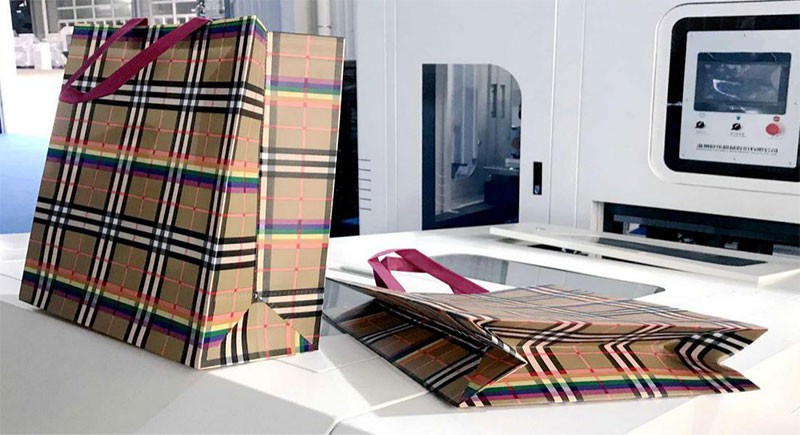

Bag samples
Bag Folding (Standard Type)
Additional Function - Bottom inside folding (M Type)
Machine Technical Data
SN | Item | Specification |
1 | Roller width | 550-1160mm |
2 | Bag making speed | 60-85pcs/min |
3 | Bag Width | 180-500mm |
4 | Bag Height | 220-450mm |
5 | Gusset | 80-200mm |
6 | Power supply | 380V |
7 | Total power | 35KW |
8 | Rated power | 12KW |
9 | Overall size | L 9500* W 4100* H 2625mm |
10 | Weight of Machine | 12000KGS (40HQ*1) |
11 | Handle Length | 380-600mm |
12 | Handle Width | 25mm |
Main Equipment and Description
SN | Part | Picture |

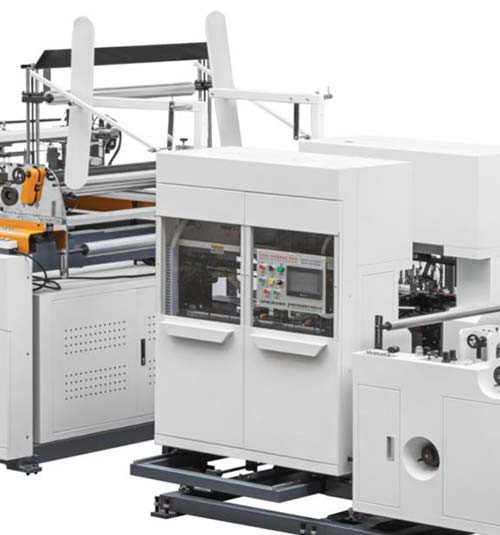

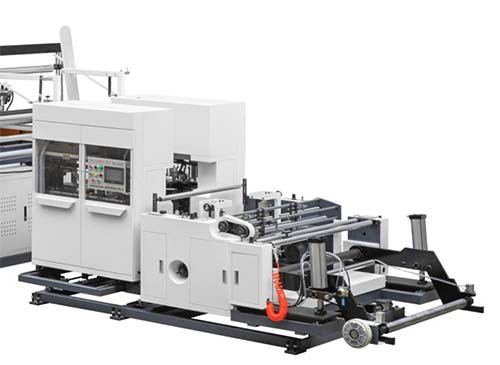

1 | Feeding Unit |
|
2 | Soft Handle |
|
3 | Host Box Forming Unit |
|
4 | Bag Folding Unit |
|

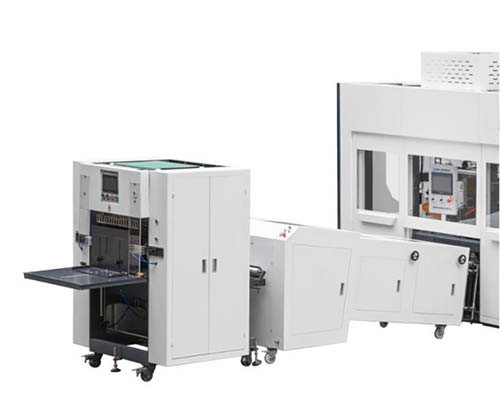

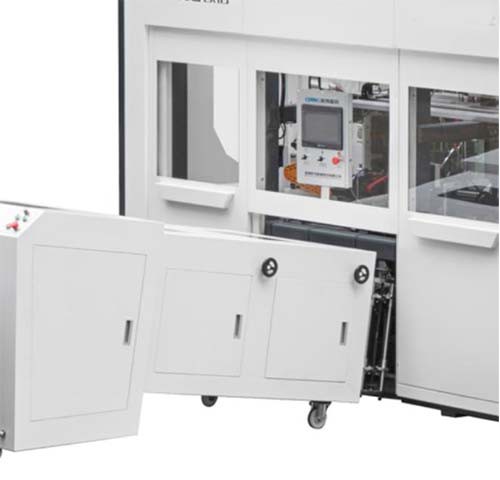

5 | Bag Collect Unit |
|
Part 1 Feeding Unit | |||||
SN | Item | Manufacturer | Qty | Specification | Picture |
1 | Roll Feeding | ALLWELL MADE | 1SET | Auto tension control |
|
2 | Roll Diameter | 1SET | Max 1400mm |
| |
3 | Roller Control Device | 10KG Magnetic power tension |
| ||
4 | Correcting Deviation Device | 1SET | Automatic EPC system |
| |
5 | Automatic Shutdown System | Automatic tracking control |
| ||

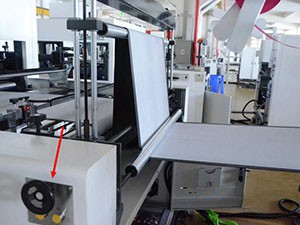

6 | Photoelectric Eye | CK | 1SET | Automatic adjusting |
|
7 | Bag Mouth Folding Device | ALLWELL MADE | 2SETS | Automatic adjusting |
|
8 | Bag Mouth Sealing Device | ALLWELL MADE | 2SETS | Automatic adjusting |
|
9 | Ultrasonic | ALLWELL MADE | 2SETS | Ø55MM Round mould |
|
10 | Bag Mouth Folding Step Motor | SOYO | 1SET |
| |
11 | Converter Motor | SUCHUAN, SHANGHAI | 1SET | 1.5KW |
|
Part 2 Soft Handle Sealing Unit | |||||
SN | Item | Manufacturer | Qty | Specification | Picture |
1 | Handle Feeding Part | ALLWELL MADE | 2SETS | Max Diameter up to 1000mm |
|
2 | Automatic Shutdown System | 2SETS | Each side have one electric eye checking the fabric. |
| |
3 | Online Handle Sealing Device | 2SETS | Handle Length: 380-600mm |
| |
4 | Touch Screen | WEINVIEW ,TAIWAN | 2SETS |
| |
5 | Ultrasonic | ALLWELL MADE | 4SETS | Two sets each side; |
|
6 | Handle Sealing Part 110 Step Motor | SOYO | 4SETS | Two sets each side |
|
7 | Handle Sealing Part 57 Step Motor | SOYA | 2SETS | One set each side |
|
8 | Handle Sealing Part 42 Step Motor | SOYO | 4SETS | Two sets each side |
|
9 | Direct Current Motor | 2SETS | One set each side |
| |
10 | Handle Sealing Part Forward/Backward Step Motor | SOYO | 1SET |
| |
11 | Inverter | DOVOL, TAIZHOU | 2PCS | One set each side |
|
12 | Relay | SCHNEIDER, GERMANY | 8PCS | Four sets each side |
|
13 | 57 Step Motor/42 Step Motor Drive | 6PCS | Three sets each side |
| |
14 | 110 Step Motor Drive | 4PCS | Two sets each side |
| |
Part 3 Host Box Forming Unit | |||||
SN | Item | Manufacturer | Qty | Specification | Picture |
1 | Bag Width Adjusting Shelf Device | ALLWELL MADE | 1SET | Automatic Height Adjusting according to bag width plus gusset |
|
2 | Online Creasing Device | ALLWELL MADE | 1SET | Automatic Adjusting according to bag gusset |
|
3 | Cutter Device | ALLWELL MADE | 1SET | Strike-slip dislocation cutter, Save 6mm fabric each cut |
|
4 | Mould Up/Down Device | ALLWELL MADE | 1SET | Shelf adopt whole castings |
|
5 | Box Bag Gusset Forming Device | ALLWELL MADE | 2SETS | Each side with visual ultrasonic sealing push device |
|
6 | Touch Screen | WEINVIEW ,TAIWAN | 1SET | Main Operation Computer |
|
7 | Remoter | ALLWELL MADE | 1SET | One Transmitter; |
|
8 | Host Mould Up/Down Servo Motor | INOVANCE, SHENZHEN | 1SET | 9.5KW |
|
9 | Ultrasonic Power Servo Motor | DELTA ,TAIWAN | 2SETS | 2KW |
|
10 | Bag Grab Servo Motor | DELTA ,TAIWAN | 2SETS | 2KW |
|
11 | Online Creasing Servo Motor | DELTA ,TAIWAN | 1SET | 1.5KW |
|
12 | Cork Base Forward/Back Servo Motor | DELTA ,TAIWAN | 1SET | 400W |
|
13 | Side Insert 110 | SOYA | 4SETS |
| |
14 | Feeding Servo Motor | DELTA ,TAIWAN | 2SETS | 14.1KW |
|
15 | Bottom Inserter Advance/Back Servo Motor | DELTA ,TAIWAN | 2SETS | 750W |
|
16 | Bottom Inserter Up/Down Step Motor | SOYO | 2SETS |
| |
17 | Cutter Step Motor | SOYO | 1SET |
| |
18 | Bag Release Step Motor | SOYA | 4SETS |
| |
19 | Left/Right Panel Step Motor | SOYA | 2SETS |
| |
20 | Shelf Up/Down Step Motor | SOYO | 1SET |
| |
21 | Online Creasing Position Adjusting Step Motor | 1SET |
| ||
22 | Online Creasing Distance Adjusting Step Motor | 1SET |
| ||
23 | Bag Release Position Adjusting Step Motor | 4SETS |
| ||
24 | Photoelectric Eye Adjusting Step Motor | 1SET |
| ||
25 | Ultrasonic | ALLWELL MADE | 2SETS | 350*50MM Glyptic mould |
|
26 | Ultrasonic | ALLWELL MADE | 2SETS | 200*100MM Glyptic mould | |
27 | Host Motion Controller | TRIO ,BRITAIN | 1SET | Strong security of machine more safe operation |
|
28? | Host Programmable Logic Controller (PLC) | DELTA,TAIWAN | 2SETS |
| |
29 | Host Box Forming Unit Inverter | DELTA,TAIWAN | 1SET | 2.2KW |
|
30 | Circuit breaker | SCHNEIDER, GERMANY | 1PCS |
| |
31 | Circuit breaker | SCHNEIDER, GERMANY | 18PCS |
| |
32 | Contactor | CHINT,CHINA | 4PCS |
| |
33 | Relay | SCHNEIDER, GERMAN | 9PCS |
| |
34 | Pneumatic component | AIRTAC,TAIWAN |
| ||
35 | Pneumatic component | SMC |
| ||
Switch | SCHNEIDER, GERMAN |
| |||
Part 5 Bag Collect Unit | |||||
SN | Item | Manufacturer | Qty | Specification | Picture |
1 | Bag Collect Device | ALLWELL MADE | 1SET |
| |
2 | Inverter | DOVOL, TAIZHOU | 1PCS |
| |
3 | Programmable Logic Controller (PLC) | DELTA,TAIWAN | 2SETS |
| |
4 | Relay | SCHNEIDER, GERMAN | 3PCS |
| |
5 | Step Motor | SOYO | 1SET |
| |
6 | Magnetic Valve | AIRTAC | 2SETS |
| |
7 | 1SET |
| |||
8 | Touch Screen | WEINVIEW ,TAIWAN | 1SET |
| |
9 | Converter Motor | SUCHUAN, SHANGHAI | 1SET | 1.5KW |
|
Leader Non Woven Box Bag Making Machine Comparison
No | Item | ALLWELL MACHINERY | OTHER SUPPLIER |
1 | Industry character | Professional focus on non woven bag making industry, with R & D and innovation | Variety business, as plastic package, cover lots of other business |
2 | History | We keep R & D for four years, Leader has been sold since 2013 about five years | Imitation, sales less than three year |
3 | Market share | ＞80% | ＜20% |
4 | Machine Weight | 12Ton | 4-6Ton |
5 | Steel cutting and welding | Sawing machine: smooth incisions, standard angle. | Ordinary abrasive cutting off machine. |
Standard welding platform:Guaranteed The levelness and verticality of steel welding | No standard welding platform. Welding free on the ground, Frame deformed easily. | ||
6 | Parts processing technology | Three-dimensional five-NC machine tools: high precision, high quality. We regard precision and quality as the standard. | On the outside processing, with the most common pain plus vertical processing machine, do not pay attention to quality and precision, to efficiency. |
7 | Left and right large board | Board thickness is 4cm, the machine running stable under high-speed producing. | Relatively thin, Production instability (one aspect) |
8 | Side insert board | Single castling, levelness is very good, producing steady, Easy adjust | Use screw to joint the parts, easy inclined, Not at right position, producing not steady, bag mouth not at same level |
9 | Electrical | 11 sets servo motor, 33 sets stepping motors,safe and steady, Long working life | Normal China made servo motor & stepping motor, cylinders low quality |
10 | Controller | Trio motion controller with PLC combined, double protection, Signal is not disturbed, Safe and steady, long service life | Only PLC control, easy to be to be distracted, not safe |
11 | Guide rail + Mould | Low noise,energy saving.Adopt smart mould save time for changing mould and save money | Normal mould, long time for changing mould, high cost of mould, Customize mould need time,can not use in time |
12 | Ultrasonic | Our Own brand Ultrasonic, 72 hours running test, quality guaranty, after sales service in time | They purchase Ultrasonic from other company, don't have their own brand ultrasonic. |
13 | Touchscreen control system | Get ability to analyze production data, such as machine stop reason, etc. | Normal display system |
14 | EPC system | 3 EPC system | 1-2 EPC system |
15 | Intelligence level | Allwell Machine adopt more intelligent design to operation more conveniently. | It is high dependent on the worker's operation skill, experience and good eyes. |
Leader Compare With Similar Products
Leader | Other |
|
|

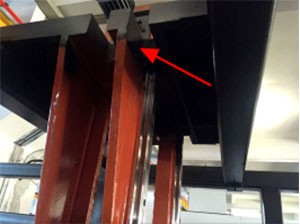

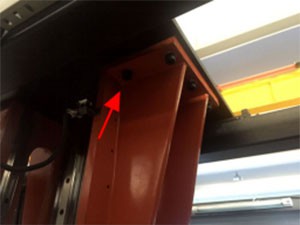

The whole castings | Iron plate splicing, screw fixation |
|
|

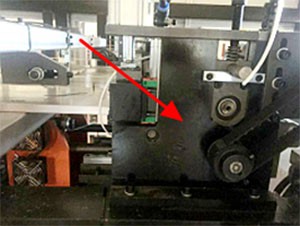

The whole castings | Splicing structure |
|
|
The whole castings | Splicing structure |
|
|

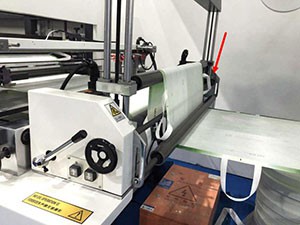

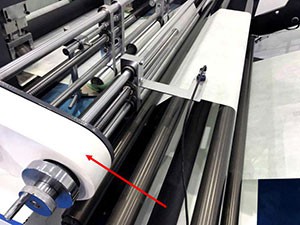

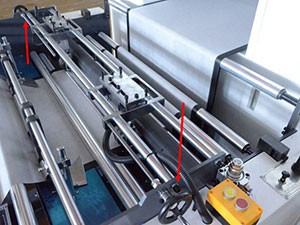

Photoelectric Eye for Correcting Deviation | Photoelectric Eye for Correcting Deviation |
|
|

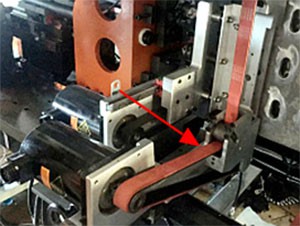

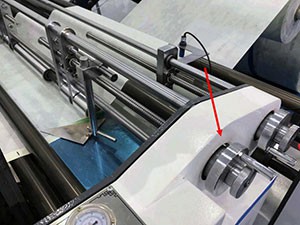

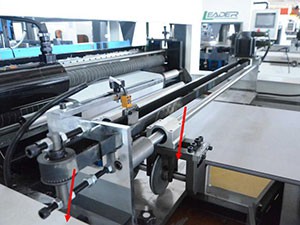

Bag Mouth Folding Device | Bag Mouth Folding Device |
|
|

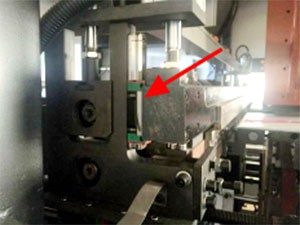

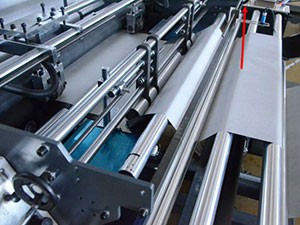

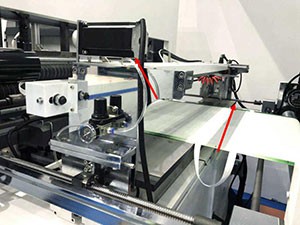

Bag Mouth Sealing Device | Bag Mouth Sealing Device |
|
|

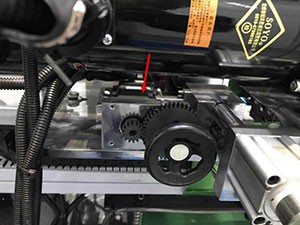

Online Creasing Device Position & Distance | Online Creasing Device Position &Distance; |
|
|

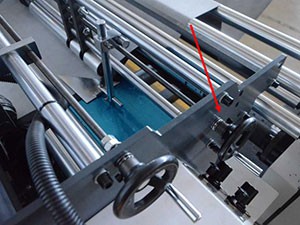

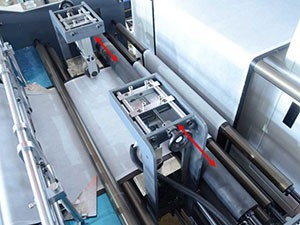

Bag Width Adjusting Shelf Device | Bag Width Adjusting Shelf Device |
|
|

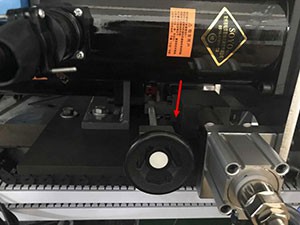

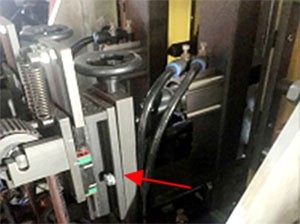

Bag Release Device Position | Bag Release Device Position |
Leader Electrical
Leader machine equip One Britain Trio motion controller and One Taiwan Delta PLC to guarantee the safety and stability, have 11 servo motors and 23 step motors in host unit, 10 step motors in soft handle sealing unit, 1 step motor in bag collect unit.
Spare Parts
A.> Attachment 1 – Spare parts for free
B.> Attachment 2 – Spare parts we suggest to buy
Facilities (Buyer prepare before engineer arrives)
Electric: 3-phase, 4-wire; 380V±10% 50Hz
Air: 0.75Mpa; 15KW screw-type compressor is suggested.
Precautions for operation of automatic non woven bag making machine
1. Turn on the main power switch of the machine tool, check whether the equipment is leaking, and preheat the barrel and mold according to the set process temperature requirements. When the temperature of the barrel reaches the process temperature, it must be kept warm for more than 20 minutes to ensure the temperature of each part of the barrel. uniform. If no abnormal phenomenon is found, the oil pump can be officially started, and the operation can only be started after "motor on" is displayed on the screen. Check whether the function of the safety door is normal.
2. Manually start the screw rotation, check whether the screw rotation sound is abnormal or stuck.
3. The operator must use the safety door. If the travel switch of the safety door fails, it is not allowed to start the machine, and it is strictly forbidden to operate without the safety door (cover).
4. Various cover plates and protective covers of the electrical, hydraulic and rotating parts of the operating equipment must be covered and fixed.
5. Non-operators on duty, no one is allowed to press the buttons and handles without permission, and two or more people are not allowed to operate the same blown film machine at the same time. Relevant personnel to troubleshoot.
6. When the machine is repaired or the mold is cleaned for a long time (more than 10 minutes), the injection seat must be moved back so that the nozzle leaves the mold, and the motor is turned off. When the maintenance personnel repair the machine, the operator is not allowed to leave his post.
7. Avoid the danger zone. When cleaning the nozzle rubber head, it is not allowed to clean it directly by hand, and iron pliers or other tools should be used to avoid burns. Climbing and shelving items to prevent soup injury, electric shock and fire.
8. When the hopper is not feeding, it is not allowed to use metal rods and rods, and violently poke the hopper to avoid damage to the split screen, shield cover and magnet frame in the hopper. If the screw is rotating, it is very easy for the metal rod to be involved in the machine. Severe damage to equipment accidents.
9. If abnormal sound, peculiar smell, sparks, oil leakage and other abnormalities are found during the operation of the machine tool, stop the machine immediately, report to the relevant personnel immediately, and explain the failure phenomenon and the possible cause of the occurrence.
