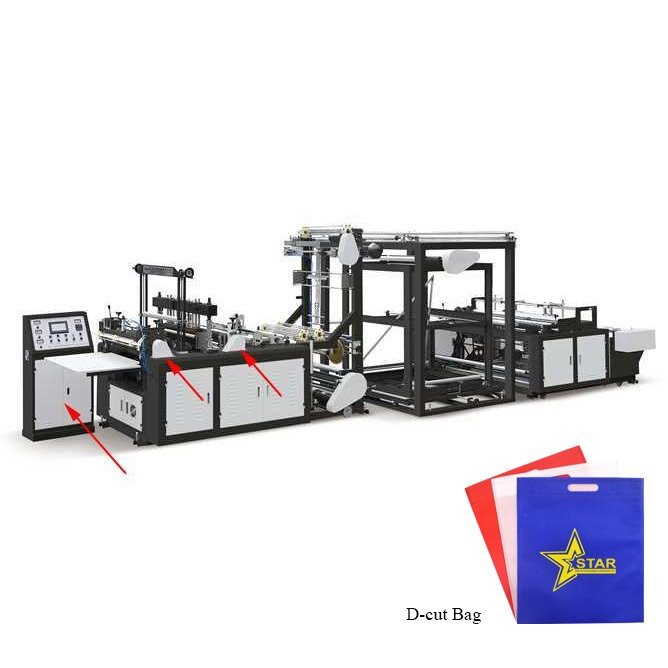

D Cut Non Woven Bag Machine

D Cut Non Woven Bag Machine

Machine characteristics:

Fully Automatically Nonwoven Bag Making Machine Procedure

Raw material Autofolding -> Bag month folding ->Thermal bonding -> Side folding -> Bottom gusset->Thermal bonding -> Bag cut -> Collection

1. Servo Feeding motor.

2. Automatic feeding material.

3. Inverter (Delta, Taiwan).

4. Computer control speed, not by speed control button.

High Speed: 40-120PCS/MIN

This is a non-woven bag making machine, which can make all kinds of non-woven bags, such as non-woven flat bags, vest bags, threading bags, etc. The product has excellent performance and uses non-woven fabrics as raw materials. Meet the needs of environmental protection.

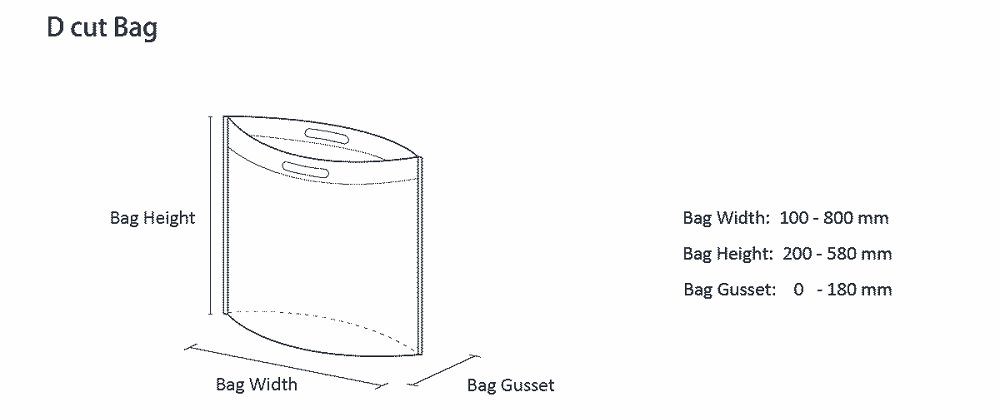

Bag Size

Machine Technical Data

Facilities (Buyer prepare)

Electric: Single phase220V±10%50HZ

Air: 0.75Mpa

D cut non woven bag is a green product, tough and durable, beautiful shape, good air permeability, reusable, washable, silk screen advertising, long service life, suitable for any company and any industry as advertising and gifts.

D cut non woven bag, made of economical non-woven polypropylene material, this D cut non woven bag and shopping bag is durable enough to meet your daily grocery needs. D Cut Non Woven Bag Machine is the fully automatic non-woven bag making machine with the most complete functions and the most stable performance in China. Based on the original bag making machine, D Cut Non Woven Bag Machine adds an automatic adhesive handle. This is truly hands-free. Compared with similar machines, D Cut Non Woven Bag Machine has higher precision, less waste and faster speed to achieve the maximum benefit for you.

This D cut non woven bag replaces grocery store plastic bags, which means you can also show customers that you are committed to sustainability. In fact, to further impress people, the non-woven material of the D cut non woven bag is reusable and recyclable, so the D cut non woven bag can instantly reduce your carbon footprint and is eco-friendly.

D Cut Non Woven Bag Machine is widely used in the production of non-woven handle bags, flat bags, box bags, t-shirt bags, organ bags, gift bags, pillow bags, zipper bags, zipper bags and so on. As long as the material is changed, different bags can be produced. Simple operation, high efficiency and good stability. The D Cut Non Woven Bag Machine is controlled by a microcomputer, and the material is pulled by a stepping motor.

Is a woven bag or d cut non woven bag more attractive?

In this sense, woven and d cut non woven bags tend to be more attractive than plastic bags. D cut non woven bag printing also tends to be as cheap as plastic bags but has many of the advantages of woven bags.

Detection:

Keeping the material tension constant and precisely controlling tension fluctuations are important factors to improve the production efficiency of Non Woven Bag Machine and control the quality of bag making. Non Woven Bag Machine tension detection is the basic premise of tension control.

The tension sensor of the traditional bag making machine has two kinds of direct measurement and indirect measurement.

For direct measurement, there is a seat-type tension sensor, such as a piezoelectric tension sensor composed of an excitation coil and a secondary coil. The secondary coil is an inductor. When the magnetic element is subjected to mechanical stress in the measurement direction, the magnetic coupling phenomenon occurs. The induced AC voltage signal proportional to the mechanical force is generated on the stage coil, and a tension signal proportional to the mechanical force is output through signal processing; the piezoresistive tension sensor is installed between the bearing and the frame, and records the horizontal direction. Reel tension, using corresponding amplifiers for full-bridge voltage supply and measurement signal processing. The signal at the output of the amplifier is proportional to the radial force, which can be used for digital display or as an instantaneous value of a closed loop; there is also a leaf spring micro-displacement tension sensor. The direct tension sensor has the advantages of wide detection range, fast response and good linearity. The disadvantage is that it cannot absorb the peak value of the tension. When the tension control system is strongly disturbed, the system has no time to respond in an instant, and the tension on the material belt changes greatly.

The indirect tension detection method is essentially a position control, and floating roller tension detection is commonly used. When the tension is stable, the tension on the material belt is balanced with the force of the cylinder, so that the floating roller is in the center. When the tension changes, the position of the floating roller will rise or fall, the floating roller potentiometer detects the change of the floating roller position, it will feed back the position signal to the tension controller, and the controller will output the control signal after calculation.

The tension detection method of comprehensive direct and indirect testing can simultaneously detect the dancer position signal and the tension electrical signal output by the sensor, which has a good buffering and smoothing effect, and also has the characteristics of high precision and high repeatability of closed-loop control. There is also a detection method that obtains the tension according to the diameter of the roll. The rotation speed of the roll is detected by the proximity switch installed on the roll, and the winding or unwinding is obtained through cumulative calculation through the set initial value of the roll diameter and material thickness. According to the current diameter of the roll, output control signals according to the change of roll diameter to control the winding torque or unwinding braking torque, so as to adjust the tension.

Bag making machine deviation detection

During the conveying process, the position deviation in the horizontal direction may occur due to various reasons such as uneven force, uneven thickness, roundness of the traction roller, etc., and online deviation detection must be carried out in a timely manner. The speed of the early bag making machine was not high, and the deviation of the material was observed and manually adjusted by the operator according to the actual situation on site. Since the photoelectric sensor has the advantages of simple structure, reliable performance, high precision, and fast response, the photoelectric sensor is now used to track the boundary line of different chromaticity areas on the edge of the packaging material, and read the offset between the actual position of the strip and the set position , after the offset is converted into an electrical signal and amplified, compared, calculated and analyzed, an instruction is sent to the servo controller to control the motor to drive the deviation correction guide mechanism, and the strip is returned to the set position, so as to achieve the purpose of automatic tracking and adjustment of conveying.

Manufacturers direct sales. As d cut non woven bag machine suppliers, TINUO offers you with lovely d cut non woven bag machine price. Contact us at once.

TINUO is one of the most excellent packaging equipment complete solution suppliers in China. Our D Cut Non Woven Bag Machine. Using the latest cutting-edge manufacturing processes, it benefits from mechanical durability and smooth operation. Welcome new and old customers to consult and buy. If you are looking for D Cut Non Woven Bag Machine manufacturers and suppliers, we will provide the best service and products, please feel free to contact us for the best price and more detailed introduction of D Cut Non Woven Bag Machine. WENZHOU DINGCHUANG INTELLIGENT TECHNOLOGY is a packaging machine specialist in the field of machinery.
